Cotton String Wound Filter Cartridge

Cotton string wound filter cartridges are made of 100% pure absorbent cotton yarn,with a SS304 core.Those cartridges are widely used in the applications which requires high working temperature for wound cartridges.Normally the cartridges can bear a max temperature to 120degree.Specification:Filter Media:Cotton yarn stainless cor···

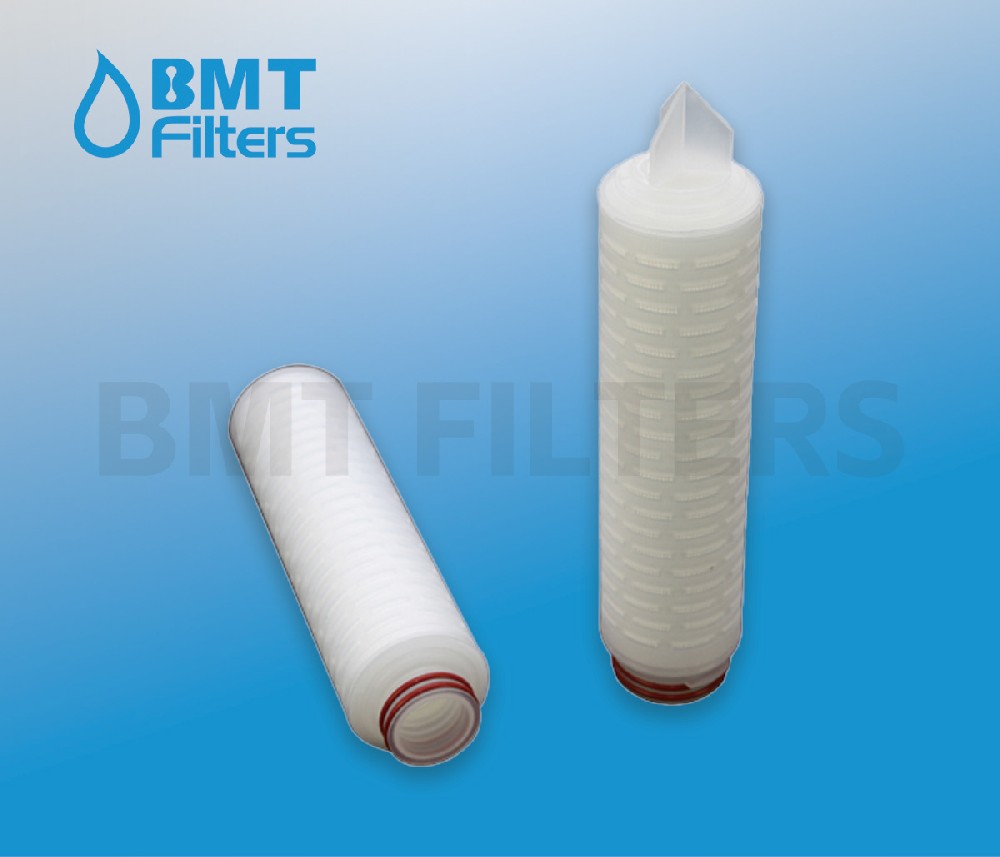

PP Pleated Filter Cartridge

PP(Polypropylene) Pleated filter cartridges are designed for filtration applications like pharmaceutical science,biotech industry,semi-conductor,food,beverages,brewing etc.They are made of 100% Polypropylene material,compatiable with a wide range fluids.They are composed of multi-layers pp media,welded with outer PP shell and en···

PTFE Pleated Filter Cartridge

PTFE(Poly Tetra Fluoro Ethylene)filter cartridges are designed for sterile filtration applications of liquid,air&gas streams.PTFE is characterized by high chemical inertness,and the PTFE membrane has about 80-95% porosity&uniform pore sizeSpecification:Filter Media: PTFE membraneFilter Rate: 0.1um,0.22um,0.45um,1um,3um,5···

PES Pleated Filter Cartridge

PES(Poly Ether Sulphone) filter cartridges are made of Poly Ether Sulphone membrane ,offering a higher particles&bacteria removal efficiency.They are widely used insterilization filtration ofantibiotic aqueous solution &biological industry&Cleaning fluid and disinfectant sterilizing.Specification:Filter Media: ,PES m···

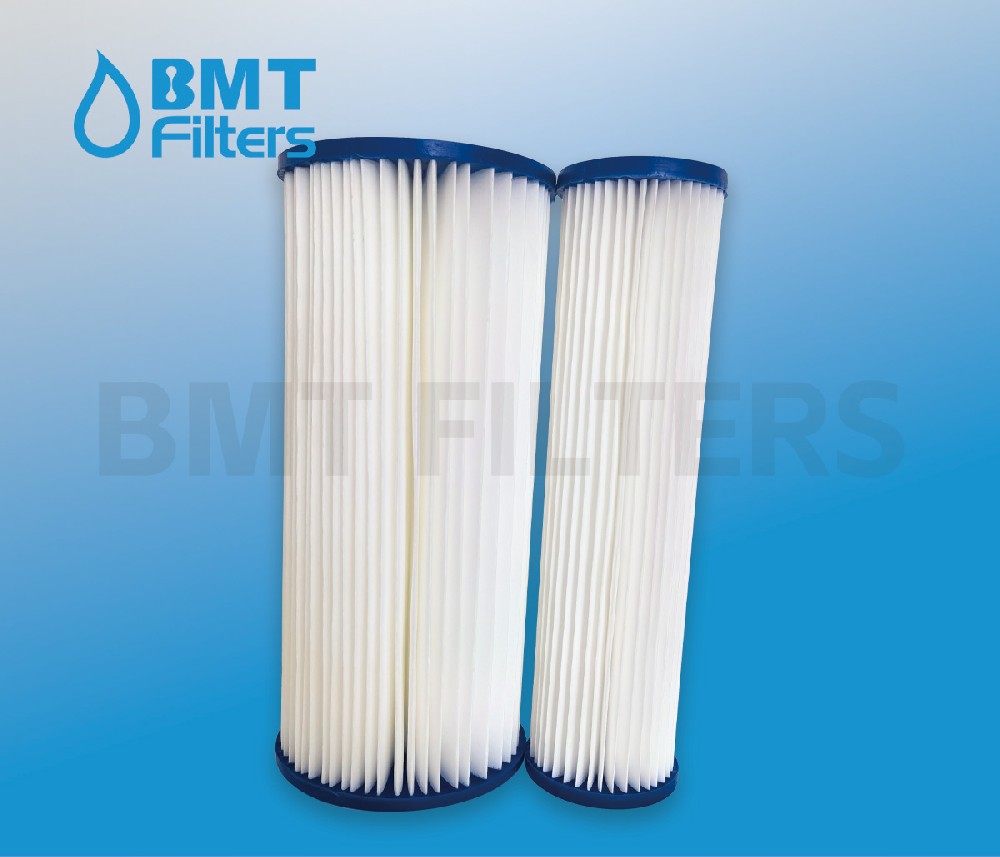

Polyester Pleated Filter Cartridge

Polyester Pleated Filter Cartridge is made of pleated polyester media.Filter Media:Polyester, Cellulose,ppCore:PolypropleneEnd cap: PU/plastisolInside diameter:28mmOutside diameter: 68mm or 115mmLength: 9-3/4’’,9-7/8’’10", 20", 30", 40"Micron Rating: 1µm,3µm,5µm,10µm,20µm,50µm

Bigblue housing

BB10" BB20"Filter HousingMaterial: PP(Blue)/ABS(Transparent)Length:10"/20"Inlet/Outlet :3/4",1",1.5"Max working pressure: 10" - 100PSI/20" -90PSIMax working temperature:50℃Accepts all standard Bigblue(4.5"dia) Filter cartridges
